Injection Molding Eyebrow Pen Tubes in 8 Cavities with our EM150-SVP/3+ Machine
In Zheijiang Province, China, a customer is employing more than 20 of our EM150-SVP/3+ Injection Molding Machines to manufacture ABS eyebrow pen tubes.
The EM150-SVP/3+ Injection Molding Machine employs the SVP/3 Servo-Drive power pack, controlled by the Nippobatta Ai-02. Applying a clamping force of 150 tons, a cycle time of 37s is achieved in fully automatic mode with a shot weight of 2g each and a thickness of 1mm in 8 cavities.
This machine series has been replaced and upgraded by our newer series of injection moulding machines.
Click here for more details.
Machine Details
- Model:
EM150-SVP/3+ Type: Toggle
Year: 2015
Clamping Force: 150 tons
Power Pack: SVP/3 Servo-Drive
Controller: Nippobatta Ai-02
Operator Details
Country: CHINA
Location: Zhejiang Province
Number of Machines: 20+
Part Details

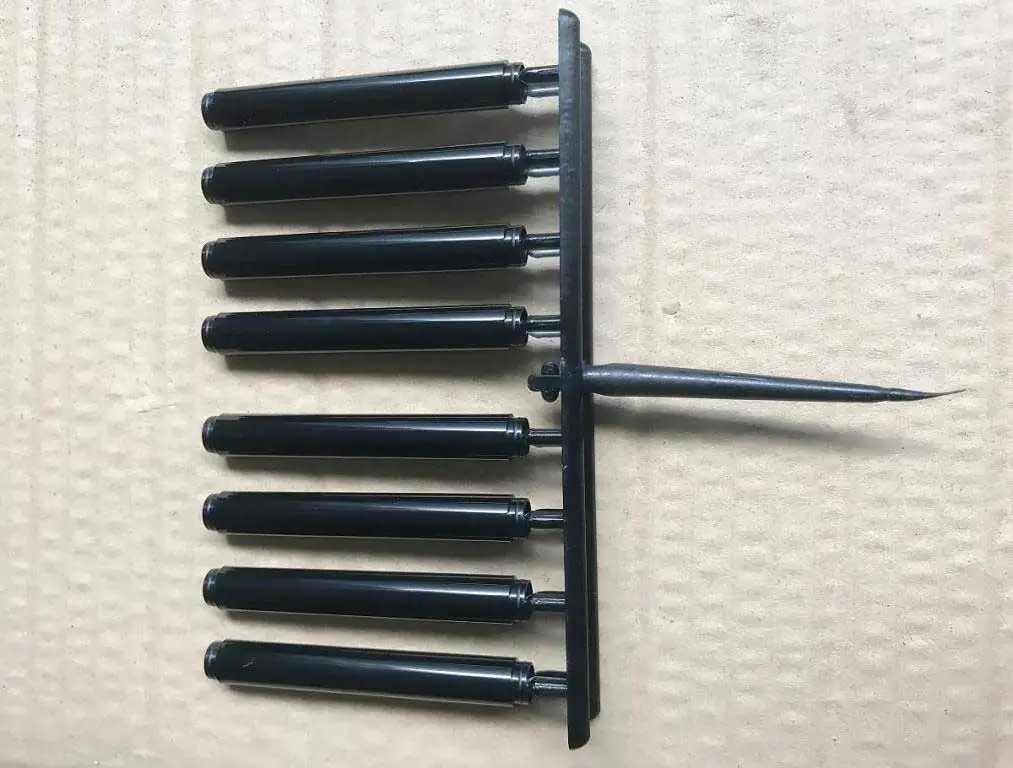

Part: Eyebrow Pen Tube
Resin: ABS
Cavities: 8
Dimensions: 70mm x 9mm diameter
Product weight: 2g each
Thickness: 1mm
Cycle Time: 37 sec.
Op Mode: Fully Automatic
