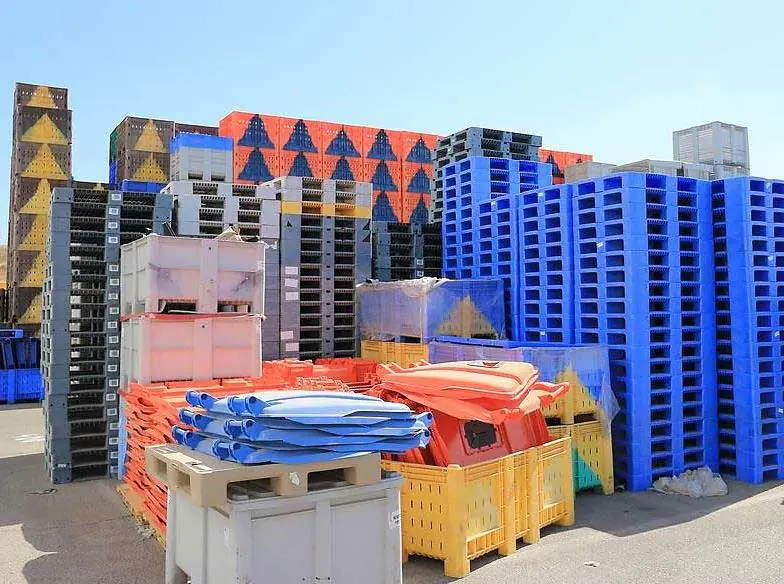

Injection Molding of Very Large Crates With The Two-Platen SM6500-TP Injection Molding Machine
In Israel, the European market leader in the manufacture of large crates and boxes is employing more than 10 of our SM6500-TP Two-Platen injection molding systems to manufacture 620 litre capacity crates out of PE with an added foaming agent.
The shot weight is an impressive 36.5kg, and using the SM6500-TP Injection Molding machine powered by the SVP/2 Servo Drive and Beckhoff controller on an EtherCAT digital main bus, at a clamping force of 6,500 tons and employing the G1 Injection Unit the customer is able to achieve a yield of over 99% and a cycle time of 280s.
In this very demanding large-scale injection molding process, our customer has been able to achieve these excellent results since 2014 by using our technological solutions to meet their strict injection molding requirements.
Machine Details
- Model:
SM6500-TP Type: Two-Platen
Year: 2014
Clamping Force: 6,500 tons
Power Pack: SVP/2 Servo-Drive
Controller: Beckhoff
Main Bus: EtherCAT™ digital
Injection Unit: G1
Operator Details
Country: ISRAEL
Location: Be’er Sheva
Number of Machines: 10+
Status: Market leader in large crates and boxes in Europe.
Part Details
Part: 620L Crate
Resin: PE with Foaming Agent
Dimensions: 1.2×1.0×0.74m
Product weight: 36.5 kg
Cycle Time: 280 sec.
Yield: 99%+
Op Mode: Fully-automatic
