How High-Altitude Solar Megabases in the Tibetan Plateau Demand Zero-Defect Injection Molding

The Tibetan Plateau is home to some of the most ambitious renewable energy projects on Earth. Chief among them is the staggering 16.9 GW, 420-square-kilometer solar complex in Gonghe County, Qinghai, China.

At over 3,000 meters above sea level, this gigawatt-scale infrastructure operates in a unique microclimate. While the thin air and cool temperatures optimise photovoltaic (PV) panel efficiency, and the resulting panel shading creates a restorative “micro-oasis” that revitalizes local vegetation, the environmental conditions are incredibly harsh.

For the polymer components that hold these solar arrays together—such as MC4 connectors, IP68 junction boxes, and inverter housings—this environment is highly destructive. To survive a 25-year operational lifecycle, injection molding solar components for high-altitude installations requires moving beyond standard plastics. It demands high-performance, engineering-grade resins and flawless manufacturing precision.

The Plateau Paradox: Why High-Efficiency Solar Destroys Standard Polymers

High-altitude solar generation operates under a geographic paradox: the environmental factors that maximize energy yield also accelerate polymer degradation in solar panels and electrical components:

1. High-Intensity UV Radiation: Unfiltered UV-A and UV-B radiation at high altitudes cleaves polymer carbon-carbon backbones. This leads to UV embrittlement, surface micro-cracking, and a loss of mechanical tensile strength.
2. Extreme Diurnal Temperature Cycles: Temperatures on the plateau can swing by more than 40°C in a single 12-hour period. This continuous thermal expansion and contraction causes severe thermal fatigue, leading to delamination and cracking at critical weld lines.
3. Abrasive, Arid Winds: Desert dust and windborne sand act as continuous sandblasters, eroding weak surface plastics and creating micro-grooves that accelerate moisture ingress.

To prevent premature field failures, manufacturers are shifting from standard commodity plastics to robust engineering resins like Polycarbonate/Acrylonitrile Butadiene Styrene (PC/ABS) for impact strength, Polybutylene Terephthalate (PBT) for dielectric resistance, and Polyphenylene Oxide (PPO) blends for hydrolytic and thermal stability.

However, high-performance resins are notoriously difficult to process. Any variation in cavity pressure or melt temperature during production can lock internal stresses into the part, leading to cracking and field failure under extreme conditions.

Critical Solar Components and Their Strict Engineering Demands

1. IP68 Junction Boxes & MC4 Connectors

These electrical junctions are continuously exposed to rain, snow, and blowing sand. Maintaining a watertight, dustproof seal over decades requires flawless sealing tracks and thread paths.

If the injection molding process permits even a fraction of a millimeter of parting-line flash (leakage of plastic melt between mold halves), the rubber gasket seat will fail to seal properly. Furthermore, the connector bodies must be completely free of micro-voids; air bubbles trapped inside the polymer can cause dielectric breakdown, short circuits, or electrical arcing under high-voltage loads.

2. Inverter Housings & Battery Enclosures

Protecting sensitive electronics requires massive, rugged enclosures. These large-format components feature deep-draw profiles that are highly susceptible to non-uniform cooling, warp, and shrinkage.

Any dimensional warp will prevent the enclosure from sealing or mounting correctly to the structural steel racking in the field. Consequently, the molded parts must maintain absolute dimensional stability and impact strength, even at temperatures well below freezing.

Engineering Solutions: Aligning Chen Hsong’s Machine Technologies

To meet these demanding specifications at scale, component manufacturers are utilizing high-performance injection molding machines. Chen Hsong, a global leader in injection molding machinery, provides the specialized technology required to process these engineering resins with high repeatability.

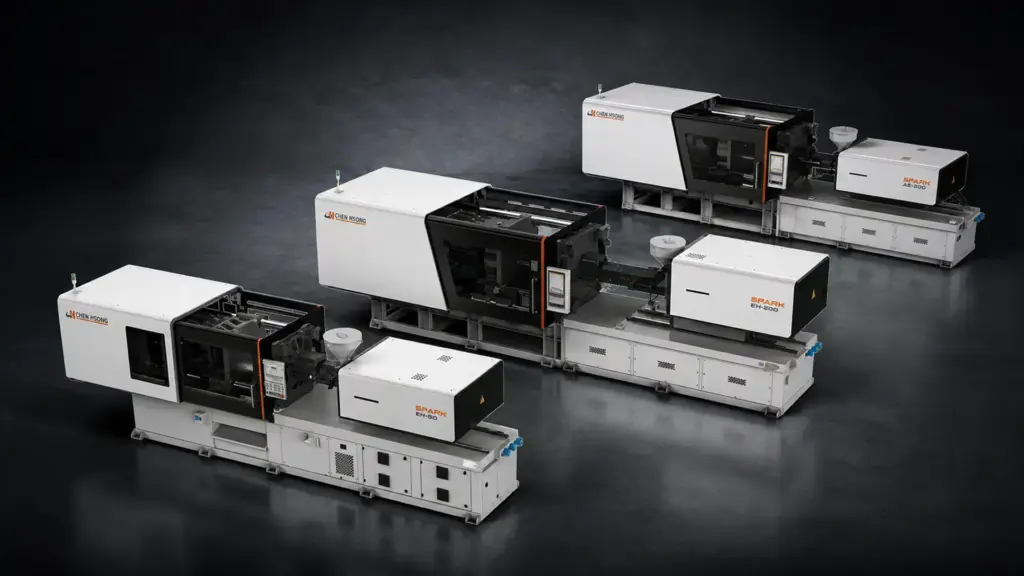

Electric Precision for IP68 Seals: The SPARK Series

For the micro-tolerances required in MC4 connectors and IP68 junction boxes, the Chen Hsong SPARK Series of all-electric machines offers high precision.

• Agile Boost Control (ABC): Incorporating a high-response servo drive system and fast CPU processing, ABC allows the SPARK series to ramp the injection motor from 0 to 2,000 RPM in under 30 milliseconds.
• The Production Benefit: This quick reaction time allows the machine to transition from the filling phase to the holding phase with millisecond-level precision. This prevents pressure spikes at the end of the stroke, eliminating parting-line flash while ensuring complete, void-free cavity filling.

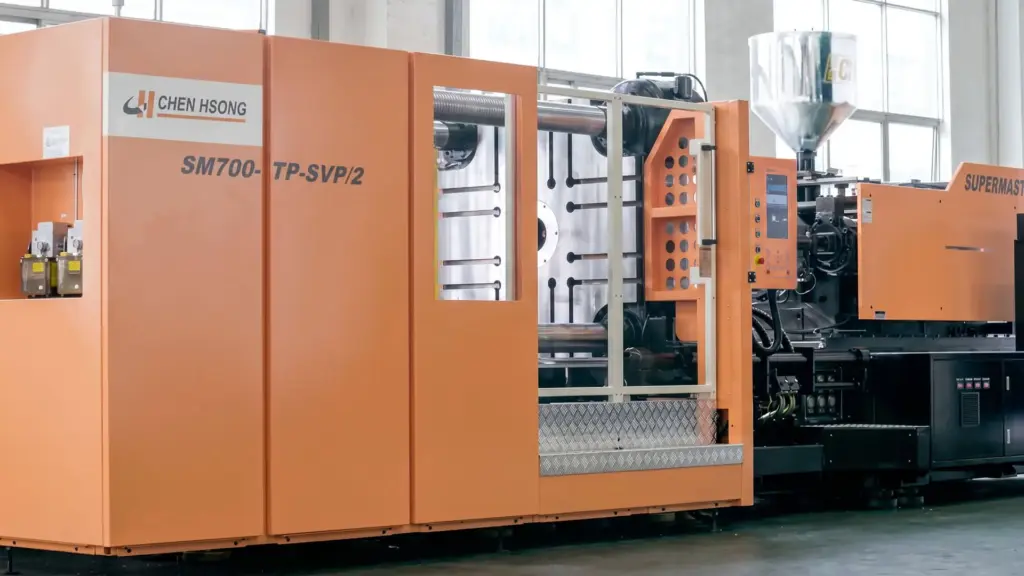

Large Deep-Draw Housings: The Supermaster (SM-TP) Series

For large-scale, deep-cavity components like inverter housings and battery enclosures, manufacturers rely on the heavy-duty Supermaster (SM-TP) Series two-platen injection molding machine.

• Patented Circular Platen: This design distributes clamping forces evenly across the entire mold face, reducing platen and mold deflection.
• The Production Benefit: True two-platen technology provides an exceptionally large mold-opening stroke and daylight within a compact footprint. This allows for clean extraction of deep-draw parts. Consistent clamping pressure prevents thickness variations and uneven shrinkage, ensuring every large enclosure fits together perfectly on-site.

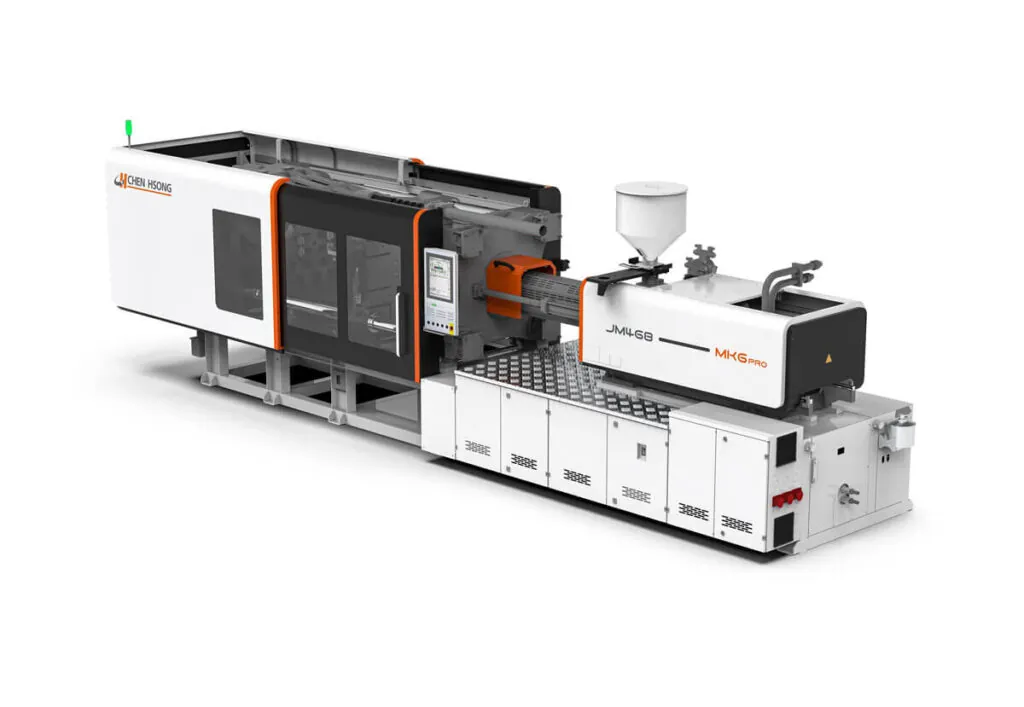

24/7 High-Yield Reliability: The MK6 PRO Series

For high-volume solar infrastructure projects, machine downtime is not an option. The MK6 PRO Series servo-hydraulic toggle line is designed for high-volume, reliable production.

• Auto Stress Release System (ASRS): Operating with a scan time of less than 1 millisecond, this system dynamically monitors the injection screw’s pressure and motion. If pressure spikes are detected, the system applies real-time micro-adjustments to relieve pressure before the melt solidifies.
• The Production Benefit: By systematically preventing internal stresses, ASRS eliminates part warpage and cosmetic defects. It also protects the machine and mold from mechanical shock, leading to reliable, continuous production runs.

Sustainable Production: Inovance Servo Drives

To align the component manufacturing process with the clean energy goals of utility-scale solar projects, Chen Hsong integrates advanced Inovance Servo Drives.

• Energy Efficiency: These highly responsive systems draw power only during active stages of the cycle, reducing energy consumption and water usage by up to 80% compared to traditional hydraulic machines.
• The Production Benefit: This drastically reduces the carbon footprint per molded component, helping manufacturers meet strict environmental standards.

Strategic Takeaways for Solar Component Molders

For injection molders looking to secure high-volume manufacturing contracts for next-generation utility-scale solar installations, we recommend the following strategic upgrades:

1. Invest in Ultra-Responsive Injection Controls: Ensure your machinery can execute sub-30ms injection responses (such as Chen Hsong’s SPARK Series with ABC) to process tricky resins like PPO and PBT without flash or internal voids.
2. Optimize Clamping Systems for Large Parts: When molding deep-draw enclosures, deploy two-platen machine architectures with active tie-bar deflection compensation (such as the SM-TP Series). This ensures even clamping force distribution, preventing mold deflection and uneven shrinkage.
3. Implement Advanced Hydraulic Stress Mitigation: Standardize on molding platforms equipped with stress-release clamp designs (such as the MK6 PRO with ASRS). Minimizing mechanical stress on the machine components ensures consistent part quality, reduces mold wear, and maintains dimensional repeatability during continuous, multi-month production runs.
