Injection Molding of Make-Up Box Bases
In Zhejiang Province, China, the JM178-Ai-SVP/2 Toggle Type Injection Molding machine has been proving its reliable operation since 2014 for a customer who is using 10 machines to manufacture ABS make-up box bases.
With a clamping force of 178 tons, driven by the SVP/2 Servo Drive controlled by the Nippobatta Ai-02, our customer is injection molding in 4 cavities with a shot weight of 10g each and thickness of 2mm. In fully automatic mode this configuration is achieving a cycle time of 43s.
This machine series has been replaced and upgraded by our newer series of injection moulding machines.
Click here for more details.
Machine Details
- Model:
JM178-Ai-SVP/2 Type: Toggle
Year: 2014
Clamping Force: 178 tons
Power Pack: SVP/2 Servo-Drive
Controller: Nippobatta Ai-02
Operator Details
Country: CHINA
Location: Zhejiang Province
Number of Machines: 10

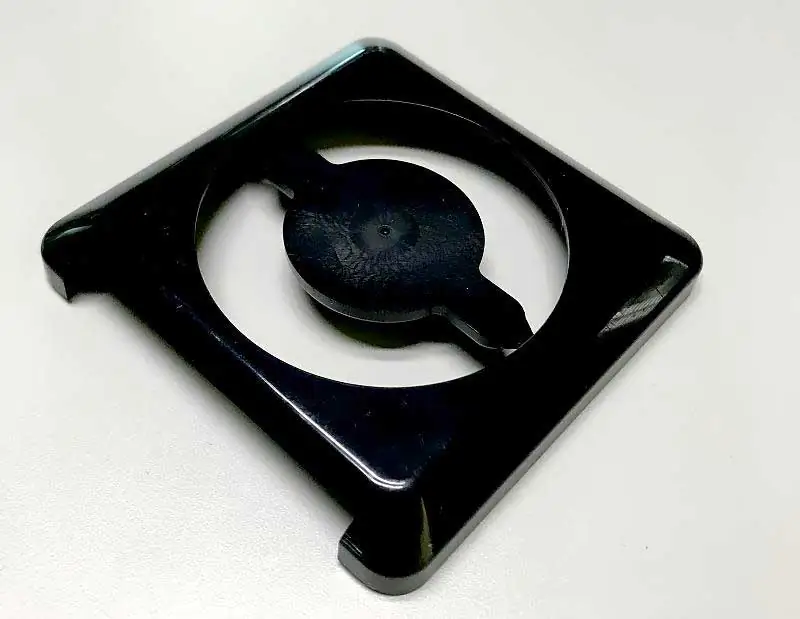

Part Details
Part: Make-Up Box Base
Resin: ABS
Cavities: 4
Dimensions: 753mm x 753mm x 100mm
Product weight: 10g each
Thickness: 2mm
Cycle Time: 43 sec.
Op Mode: Fully-automatic
