PET Preforms for Low AA Water Containers: Injection Molding with EM560-PET Machines
To manufacture large PET preforms for water containers, with a shot weight of 750g each and thickness of 8.1mm, our customer in Taizhou is employing more than 10 of our EM560-PET Toggle Type Injection Molding machines, with a clamping force of 560 tons driven by the SVP/3 Servo Drive and controlled by a Nippobatta CPC 6.0.
Operating since 2016, the customer is achieving a yield of over 99% in fully automatic mode with a cycle time of 118s. The EM560-PET Injection Molding machine features a professional plasticizing unit for thick, large preforms and guarantees low acetaldehyde levels for food-grade manufacture.
This machine series has been replaced and upgraded by our newer series of injection moulding machines.
Click here for more details.
Machine Details
- Model:
EM560-PET Type: Toggle
Year: 2016
Clamping Force: 560 tons
Power Pack: SVP/3 Servo-Drive
Controller: Nippobatta CPC 6.0
Operator Details
Country: CHINA
Location: Taizhou
Number of Machines: 10+
Part Details

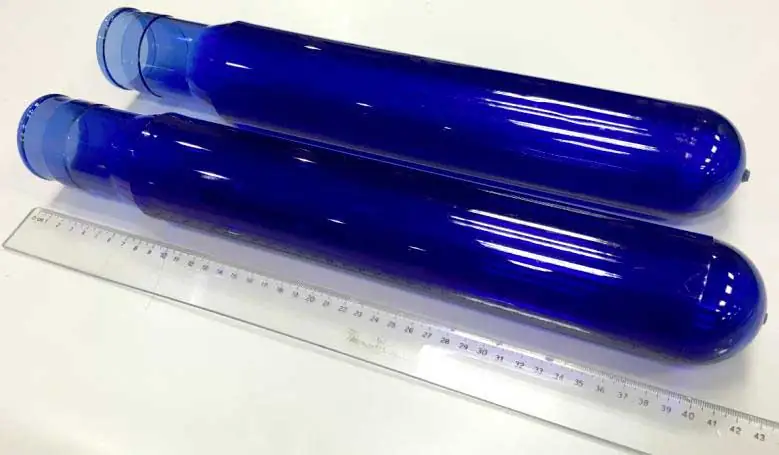

Part: Large PET Preform for Water Container
Resin: PET
Cavities: 4
Dimensions: Length: 420mm
Product weight: 750g each
Thickness: 8.1mm
Cycle Time: 118 sec.
Yield: 99%+
Op Mode: Fully-automatic
Features
- Professional Plasticizing Unit for Thick, Large Preforms
- Low AA Levels Guarantee
