Audi Q5 Seating Fabric Over-Mould
Injection Molding of Audi Q5 Seat Construction Components

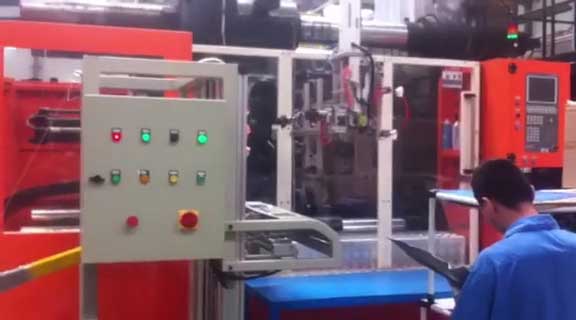

In Jilin Province, one of our customers is employing more than thirty of our SM1050-TP Two-Platen Injection Molding Machines to manufacture Audi Q5 seating fabric over-moulds as a Tier-1 supplier to this prestige automotive brand. Each SM1050-TP Injection Molding Machine has a clamping force of 1,050 tons, powered by the SVP/2 Servo-Drive using Nippobatta Ai-12 controllers.
The K1 Injection Unit enables reliable and consistent manufacture using PP/PE-TD15 resin with a yield of over 99% in fully-automatic mode. With a shot weight of 802g and a cycle time of 70s, our customer is able to make full use of the advanced features of our high performance Injection Molding technology – including two-stage compression clamping and over-moulding, and the superior control functions of our Precision Hydraulics technology.
Machine Details
Model: SM1050-TP
Type: Two-Platen
Year: 2015
Clamping Force: 1,050 tons
Power Pack: SVP/2 Servo-Drive
Controller: Nippobatta Ai-12
Injection Unit: K1
Operator Details
Country: CHINA
Location: Jilin Province
Number of Machines: 30+
Status: Tier-1 auto-parts supplier
Part Details
Part: Audi Q5 Seating
Resin: PP/PE-TD15
Product weight: 802g
Cycle Time: 70 sec.
Yield: 99%+
Op Mode: Fully-automatic
Features
-
Compressive Clamping (2-stage) -
Over-Moulding
-
Precision Hydraulics™
