Injection Molding of Volkswagen Car Door Panels

A customer in Jiangsu Province is employing more than 50 of our Two-Platen SM1900-TP Injection Molding Machines as a trusted Tier-1 auto-parts supplier to prestige Volkswagen brands.

Manufacturing Volkswagen polypropylene car door panels with a shot weight of 1,780g, at a clamping force of 1,900 tons, our customer is achieving a cycle time of 54 seconds to extremely demanding quality standards at a yield of over 99%, and able to manufacture 533 units in every eight hour shift.
This application indicates how customers can use Chen Hsong Injection Molding Machinery to manufacture to exacting tolerances, in this case to a weight variation of +0.11% to -0.16% in a fully automated process.

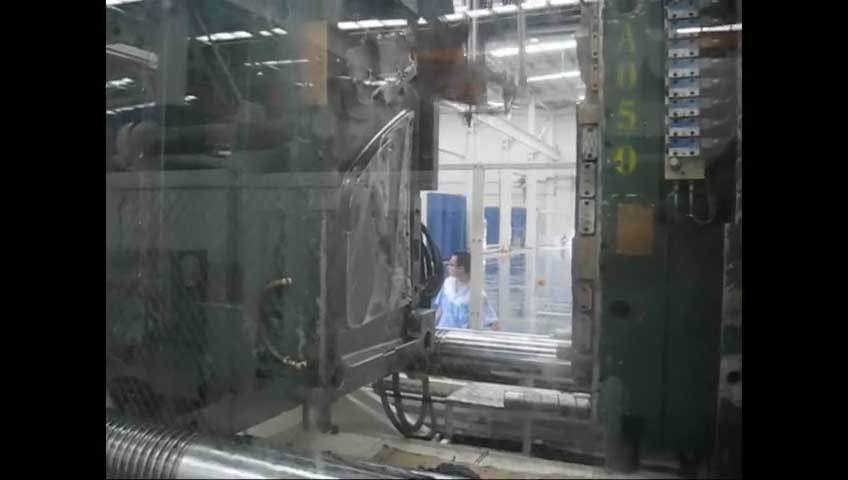

Volkswagen Car Door Panels producing by SM1900-TP injection molding machine
Chen Hsong SMTP-1900 Injection Molding Machine Thumbnail
View machine details

Machine Details

  • The Model of Chenhsong Injection Molding Machine's Type
    Model: SM1900-TP
  • The Type of Chenhsong Injection Molding Machine

    Type: Two-Platen

  • The Year when Chenhsong Injection Molding Machine produced

    Year: 2011

  • The Clamping Force of Chenhsong Injection Molding Machine

    Clamping Force: 1,900 tons

  • The Power Pack of Chenhsong Injection Molding Machine

    Power Pack: SVP/2 Servo-Drive

  • The Controller of Chenhsong Injection Molding Machine

    Controller: Beckhoff

  • The Main Bus of Chenhsong Injection Molding Machine

    Main Bus: EtherCAT™ digital

Operator Details

  • The Country where Chenhsong Injection Molding Machine comes from

    Country: CHINA

  • The Location where Chenhsong Injection Molding Machine is

    Location: Jiangsu Province

  • The Number of Chenhsong Injection Molding Machine

    Number of Machines: 50+

  • The Status of Chenhsong Injection Molding Machine

    Status: Tier-1 auto-parts supplier

Part Details

  • The Part of Chenhsong Injection Molding Machine

    Part: Volkswagen Car Door Panel

  • The Resin of Chenhsong Injection Molding Machine

    Resin: PP

  • The Dimensions of Chenhsong Injection Molding Machine

    Dimensions: 550mm x 750mm

  • The Product Weight of Chenhsong Injection Molding Machine Part

    Product weight: 1,780g

  • The Cycle Time of Chenhsong Injection Molding Machine

    Cycle Time: 54 sec.

  • The Yield of Chenhsong Injection Molding Machine

    Yield: 99%+

  • The Op Mode of Chenhsong Injection Molding Machine

    Op Mode: Fully-automatic

  • Productivity: 533 / shift (8 hr)

  • Weight Variation: +0.11% | -0.16%
