PCTG Glasses

Injection Molding of PCTG Glasses with EM320-SVP/2 Injection Molding Machines

Our Toggle-Type EM320-SVP/2 Injection Molding machines are being put to work by a customer in Zhejiang Province, China, to manufacture PCTG glasses. Using 80 injection molding machines driven by an SVP/2 Servo Drive controlled by the Nippobatta Ai-01, they have been operating in fully automatic mode since 2011 manufacturing these products with a shot weight of 155.4g and thickness of 2mm, achieving a cycle time of 54s.

*This machine series has been replaced and upgraded by our newer series of injection moulding machines.
Click here for more details.

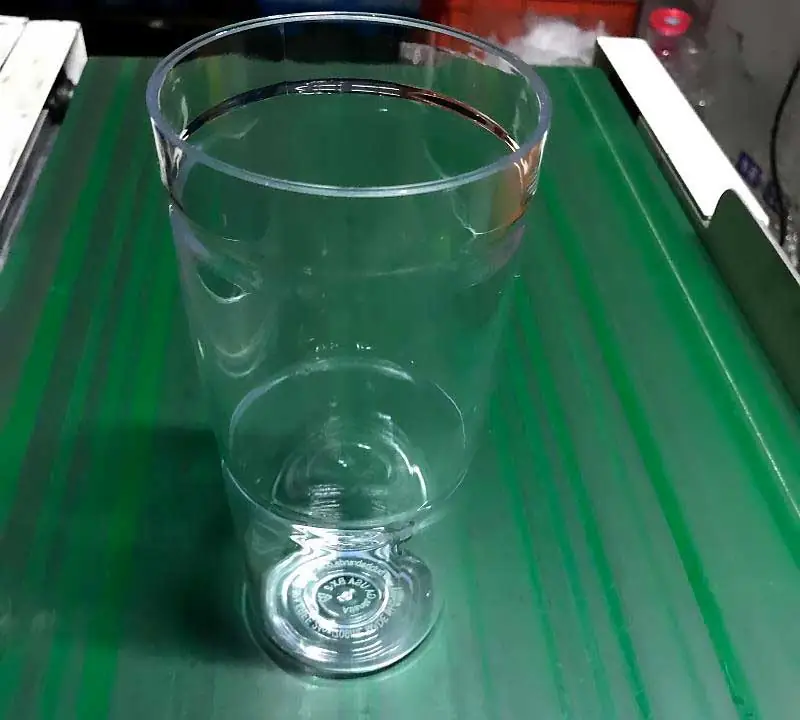

PCTG Glasses produced by ChenHsong EM320-SVP/2 Injection Molding Machine
ChenHsong EM-SVP/2 Series Injection Molding Machine Thumbnail

Machine Details

  • The Model of Chenhsong Injection Molding Machine's Type
    Model: EM320-SVP/2
  • The Type of Chenhsong Injection Molding Machine

    Type: Toggle

  • The Year when Chenhsong Injection Molding Machine produced

    Year: 2011

  • The Clamping Force of Chenhsong Injection Molding Machine

    Clamping Force: 320 tons

  • The Power Pack of Chenhsong Injection Molding Machine

    Power Pack: SVP/2 Servo-Drive

  • The Controller of Chenhsong Injection Molding Machine

    Controller: Nippobatta Ai-01

Operator Details

  • The Country where Chenhsong Injection Molding Machine comes from

    Country: CHINA

  • The Location where Chenhsong Injection Molding Machine is

    Location: Zhejiang Province

  • The Number of Chenhsong Injection Molding Machine

    Number of Machines: 80

Part Details

  • The Part of Chenhsong Injection Molding Machine

    Part: PCTG Glass

  • The Resin of Chenhsong Injection Molding Machine

    Resin: PCTG

  • The Dimensions of Chenhsong Injection Molding Machine

    Dimensions: 203mm x 93mm diameter

  • The Product Weight of Chenhsong Injection Molding Machine Part

    Product weight: 155.4g

  • The Thickness of Chenhsong Injection Molding Machine

    Thickness: 2mm

  • The Cycle Time of Chenhsong Injection Molding Machine

    Cycle Time: 54 sec.

  • The Op Mode of Chenhsong Injection Molding Machine

    Op Mode: Fully-automatic
