LED107 Plastic Lamp Shade

Injection Molding of Plastic Lamp Shades for LED

In Jiangmen, a well known appliance manufacturer is producing plastic lamp shades seen in the picture made with PP resin and manufactured with the JM168-MK6 plastic injection molding machines.

Reliable production is acheived using our JM168-MK6 Toggle Type Plastic Injection Molding Machines with our MK6 servo drive technology and controlled with the CPC6.0 controllers. The process runs in a 4 cavity mold, shotweight of 24g, fully automatic mode with a cycle time of 15sec.    The customer is very satisfied that our Injection Molding solutions have easily proved equal to the task of meeting the exacting requirements of high end manufacturing for the household appliances industry.

Injection Molding Plastic Lamp Shade

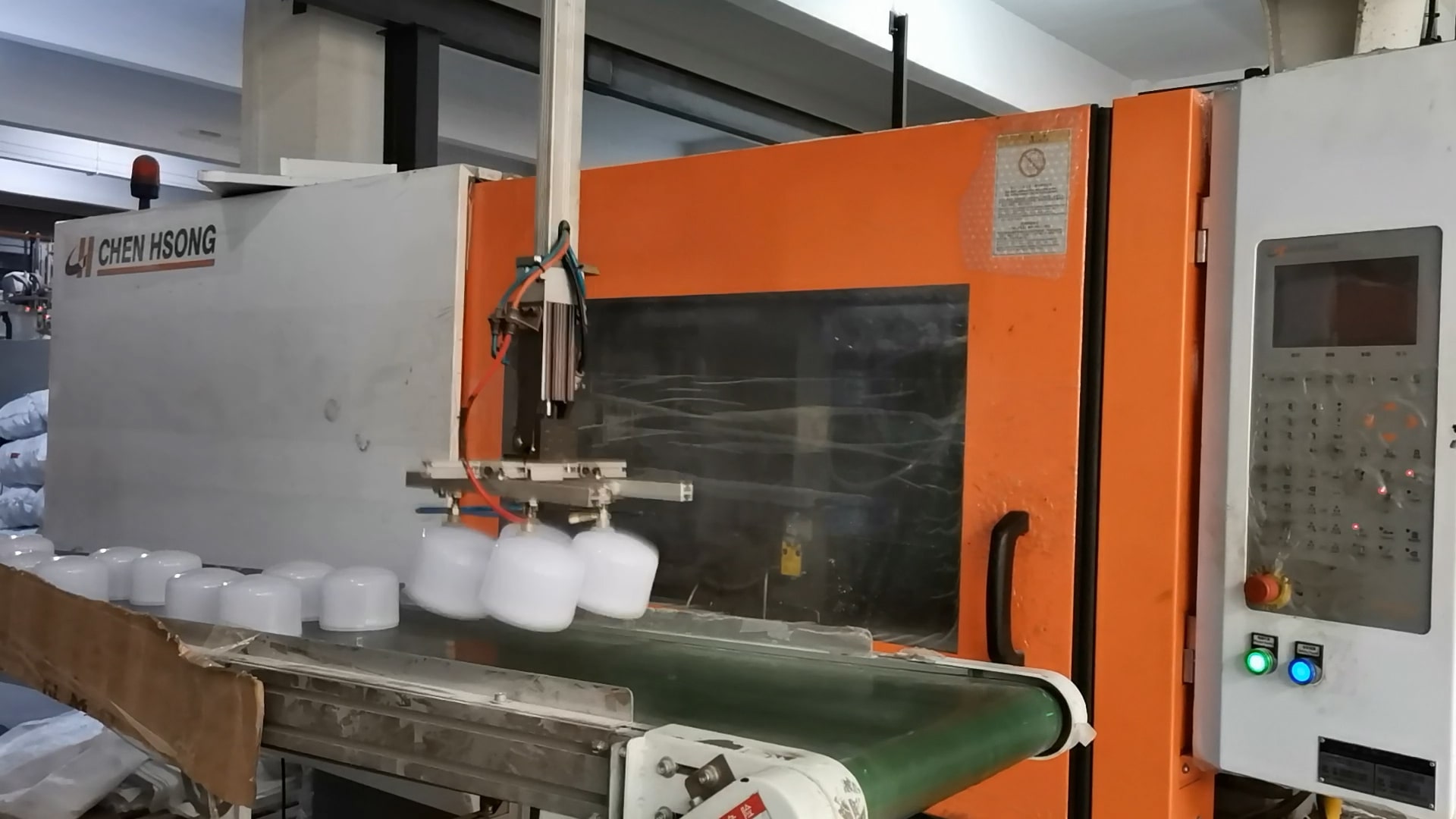

Chenhsong injection molding machine MK6 168 with CP6 controller
View machine details

Machine Details

  • The Model of Chenhsong Injection Molding Machine's Type
    Model: JM168-MK6
  • The Type of Chenhsong Injection Molding Machine

    Type: Machine reaming machine

  • The Clamping Force of Chenhsong Injection Molding Machine

    Clamping Force: 168 tons

  • The Controller of Chenhsong Injection Molding Machine

    Controller: CPC6.0

Operator Details

  • The Country where Chenhsong Injection Molding Machine comes from

    Country: China

  • The Location where Chenhsong Injection Molding Machine is

    Location: Jiangmen

Part Details

  • The Part of Chenhsong Injection Molding Machine

    Part: LED107 Lampshade

  • The Resin of Chenhsong Injection Molding Machine

    Resin: PP

  • The Cavities of Chenhsong Injection Molding Machine

    Cavities: 1 out 4

  • The Product Weight of Chenhsong Injection Molding Machine Part

    Product weight: 24 g

  • The Cycle Time of Chenhsong Injection Molding Machine

    Cycle Time: 15 secs.

  • The Op Mode of Chenhsong Injection Molding Machine

    Op Mode: Fully-automatic

Other

  • Pickup method: robotic arm
