Moulding High-End Medical Equipment Part

Dawid Gorecki Articles, Solution Showcases

Being the birthplace of the very first China-made Two-Platen Injection Moulding Machine in 2007, Chen Hsong Group has now successfully launched a full range of Two-Platen Servo Drive injection moulding machine from 700 to 6,500 tons after years of continuous development and innovation. With a number of innovation patents, this series of injection moulding machines feature the smallest footprint with the largest opening stroke. Also the advanced ultra-modular design allows customers to freely “mix-and-match” between the clamping and injection units to meet individual customers’ need.

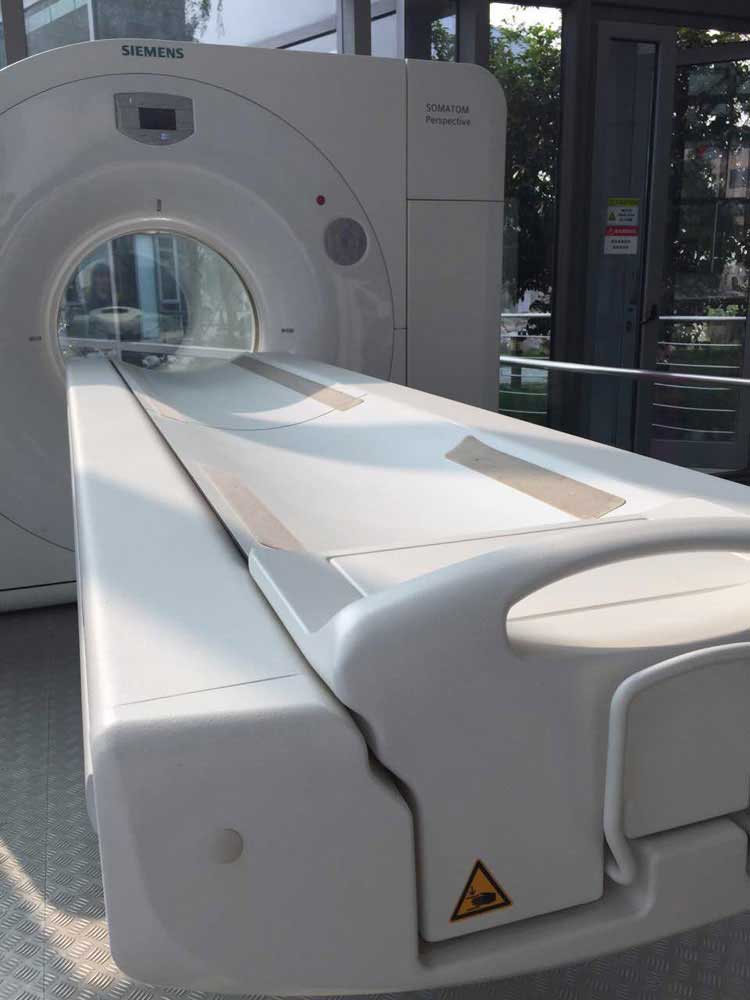

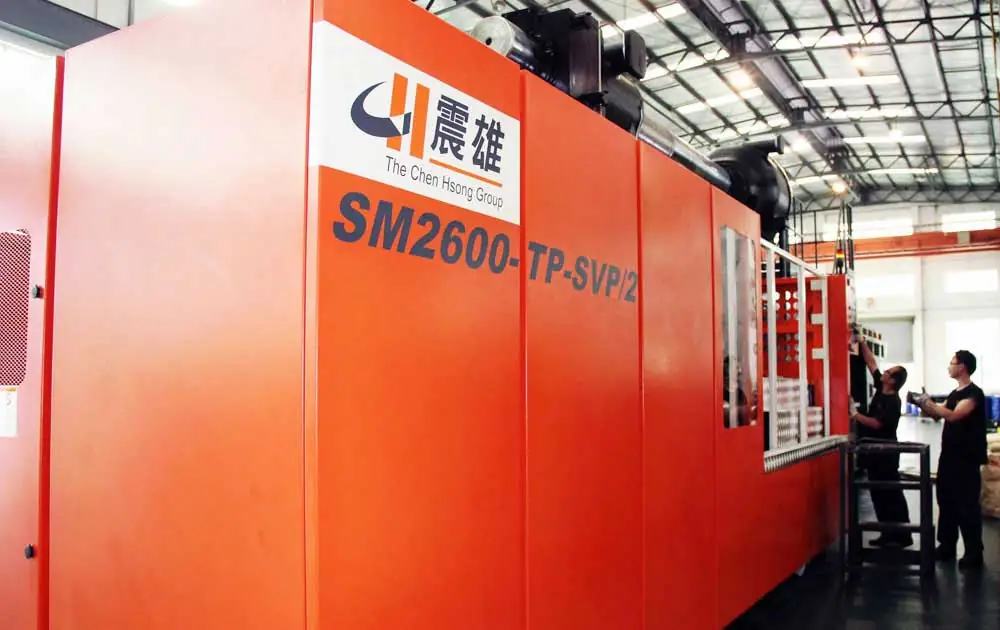

Recently, Xinli Mould Plastic Co., Ltd., a company located in Shunde, Foshan, has manufactured a large mould used for producing MRI (Magnetic Resonance Imaging) machine’s casing for Siemen’s Health Care Division. They chose a Chen Hsong SUPERMASTER 2600-TP-SVP/2 Two-Platen Servo Drive injection moulding machine for the mould testing production.

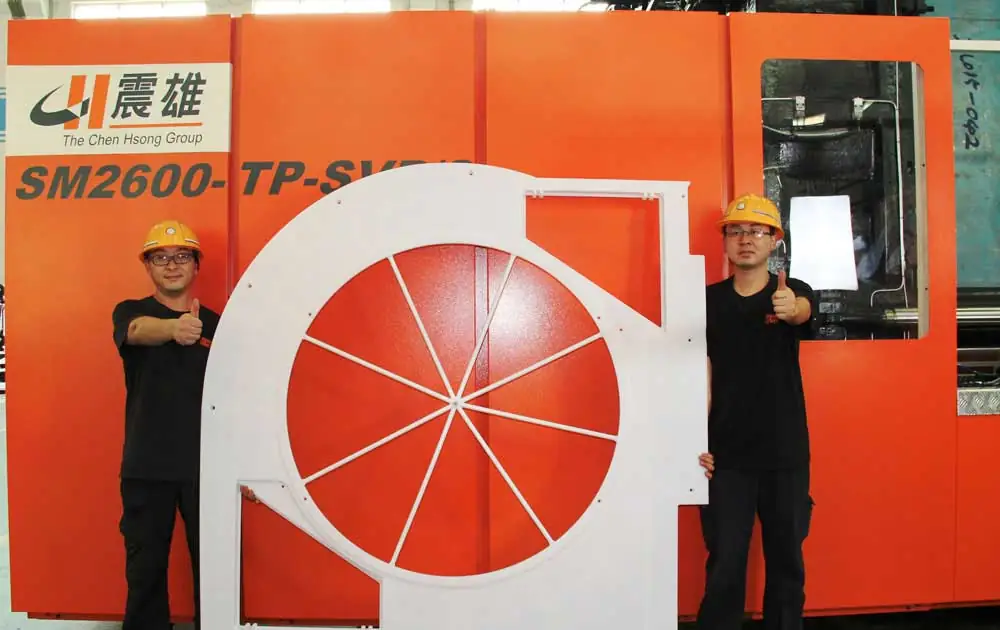

The mould of the MRI machine casing has a height of 2,100mm, width of 1,900mm and thickness of 930mm. During the mould testing process, it only took the machine a very short period of time from mould installation to adjusting to its best parameters with the aid of the automatic mould-height adjustment feature. This SM 2600-TP-SVP/2 injection machine was able to produce qualified plastic products at its fourth trial.

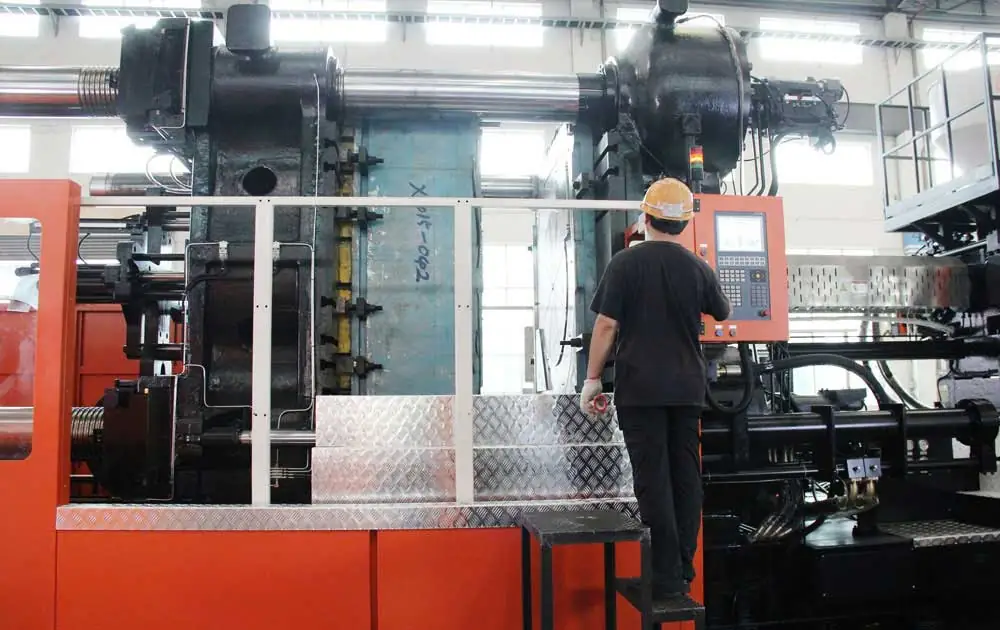

Because of its patented high-speed automatic mould-height adjustment feature, highly-tuned and optimized clamping movements, Chen Hsong’s large-tonnage Two-Platen injection moulding machines can significantly shorten cycle time; and the unique patented inter-lock mechanism combines high speed and whisper-quiet operation with extremely high precision and rock-solid stability. After plastic resin being put into the feed hopper, the machine run seamlessly and smoothly for operations like melting, clamping, injecting, holding pressure, cooling and mould-opening with the help of the intelligent computer controller. In the end it produced the large and exquisite precision plastic product that met customers requirement.
