Car Control Panel ABS Shields

Production of ABS Car Control Panel Shields

The intricacy of multi-surfaced components such as control panel car shields demands strict parameters during manufacturing to guarantee an absolute minimum of defects during production. The EM150-SVP/2 Plastic Injection Molding Machine with its Ai 02 controller and 150 ton clamping force gives the consistent quality expected in all its operations.

Over 50 machines are producing car shields in the Wenzhou Economic and Technological Development Zone. The EM150-SVP/2 machines are producing these 239x58x37 mm shields with a 1 mm thickness, injecting 48.9 g of ABS per shot. In semi-automatic operation mode smooth production is maintained with a 30 second cycle time.



*This machine series has been replaced and upgraded by our newer series of injection moulding machines.
Click here for more details.

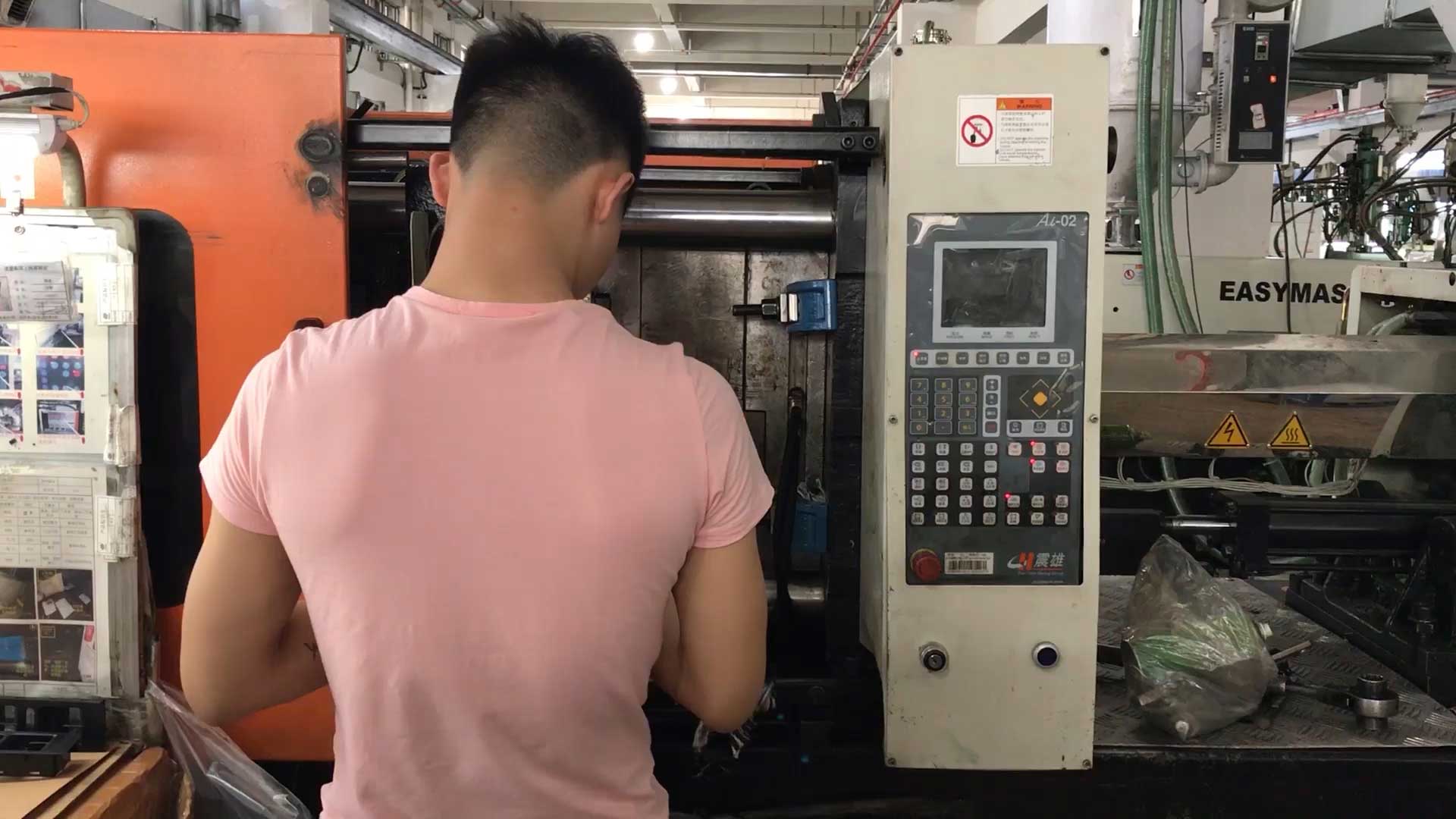

ABS Car Control Panel Shields produced by ChenHsong EM150-SVP/2 Injection Molding Machines
EM-SVP/2 Plastic Injection servo driven Molding machine

Machine Details

  • The Model of Chenhsong Injection Molding Machine's Type
    Model: EM150-SVP/2
  • The Type of Chenhsong Injection Molding Machine

    Type: High-Speed Toggle

  • The Year when Chenhsong Injection Molding Machine produced

    Year: 2013

  • The Clamping Force of Chenhsong Injection Molding Machine

    Clamping Force: 150 tons

  • The Power Pack of Chenhsong Injection Molding Machine

    Power Pack: SVP/2+ Servo Drive

  • The Controller of Chenhsong Injection Molding Machine

    Controller: Ai-02

Operator Details

  • The Country where Chenhsong Injection Molding Machine comes from

    Country: China

  • The Location where Chenhsong Injection Molding Machine is

    Location: Wenzhou

  • The Number of Chenhsong Injection Molding Machine

    Number of Machines: 50

Part Details

  • The Part of Chenhsong Injection Molding Machine

    Part: Car Control Panel Shields

  • The Resin of Chenhsong Injection Molding Machine

    Resin: ABS

  • The Cavities of Chenhsong Injection Molding Machine

    Cavities: 1

  • The Dimensions of Chenhsong Injection Molding Machine

    Dimensions: 239mm X 58mm X 37mm

  • The Product Weight of Chenhsong Injection Molding Machine Part

    Product weight: 48.9 grams each

  • The Thickness of Chenhsong Injection Molding Machine

    Thickness: 1mm

  • The Cycle Time of Chenhsong Injection Molding Machine

    Cycle Time: 30 seconds

  • The Op Mode of Chenhsong Injection Molding Machine

    Op Mode: Semi-automatic
