Steering Column Upper & Lower Shield Assembly

Injection molding of automotive steering column upper/lower shield assemblies

Quality luster finish with impact resistant durability; these are features of the steering column upper and lower shield assemblies being produced using Chenhsong EM480-SVP/3 plastic injection molding machines in the Changchun Green Park.

The EM480-SVP/3 machine, running at a quick 50 second cycle time is excellent for use in manufacturing of fine finished plastic injected parts such as those with knurled surfaces. With a 1 + 1 cavity, both the 260x161x110 mm upper and 182x170x65 mm lower shields are produced in a single cycle. Each shield is 2mm thick. The upper shield has a 200 gram shot of PP/PE and the lower shield has an 80 gram shot.

The EM480-SVP/3 is running in fully automatic mode with the Ai-02 controller and for this project is set at 480 tons of clamping force. 23 of these machines are presently in operation at our client’s site in the Changchun Green Park.

This machine series has been replaced and upgraded by our newer series of injection moulding machines.
Click here for more details.

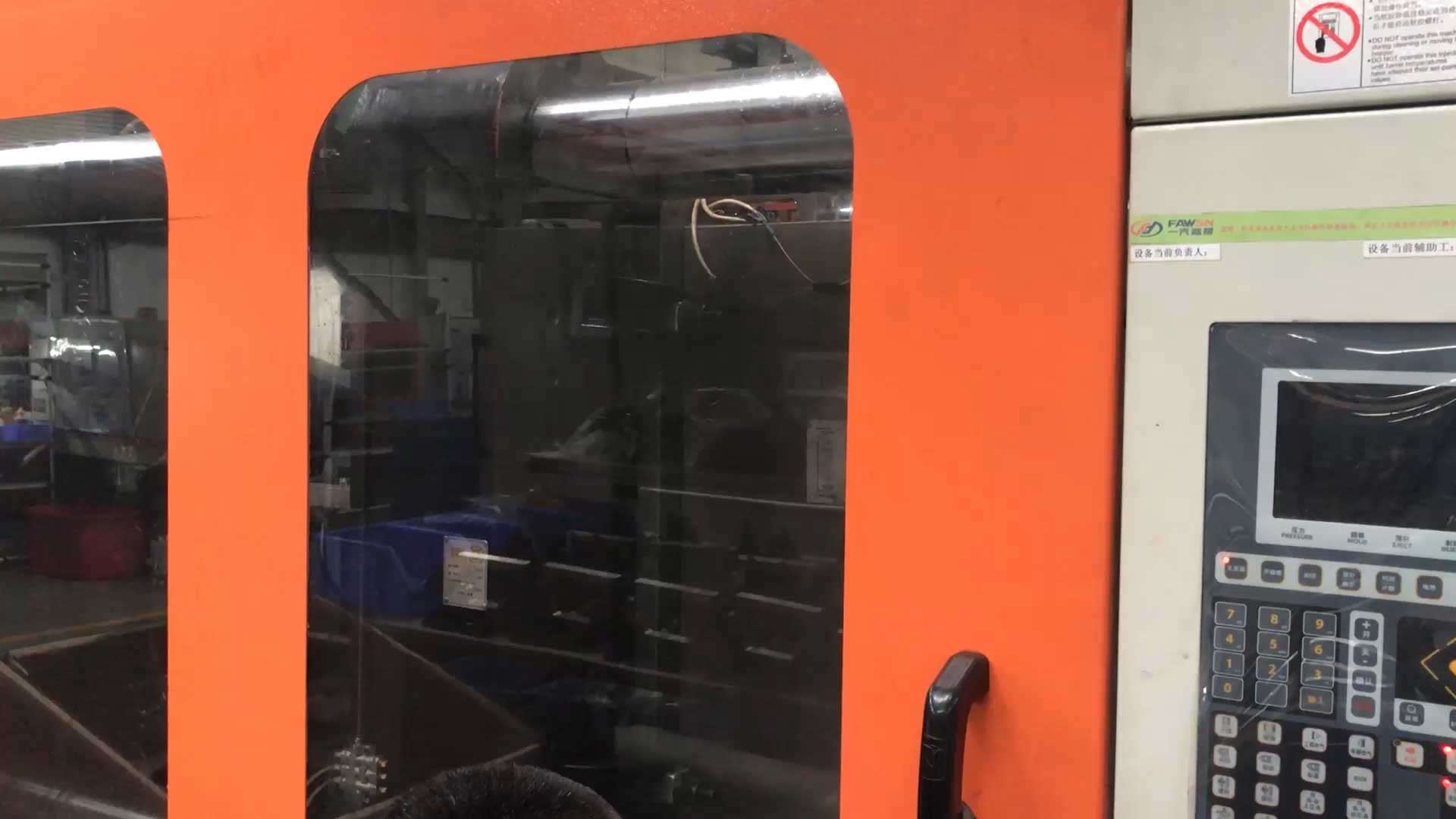

Steering column upper and lower shield assembly produced by EM480-SVP/3 Injection Molding Machines
EM480-SVP/3 Plastic Injection servo driven Molding machine

Machine Details

  • The Model of Chenhsong Injection Molding Machine's Type
    Model: EM480-SVP/3
  • The Type of Chenhsong Injection Molding Machine

    Type: High-Speed Toggle

  • The Year when Chenhsong Injection Molding Machine produced

    Year: 2015

  • The Clamping Force of Chenhsong Injection Molding Machine

    Clamping Force: 480 tons

  • The Power Pack of Chenhsong Injection Molding Machine

    Power Pack: SVP/3+ Servo Drive

  • The Controller of Chenhsong Injection Molding Machine

    Controller: Ai-02

Operator Details

  • The Country where Chenhsong Injection Molding Machine comes from

    Country: China

  • The Location where Chenhsong Injection Molding Machine is

    Location: Changchun

  • The Number of Chenhsong Injection Molding Machine

    Number of Machines: 23

Part Details

  • The Part of Chenhsong Injection Molding Machine

    Part: Steering Column Upper & Lower Shield Assembly

  • The Resin of Chenhsong Injection Molding Machine

    Resin: PP + PE

  • The Cavities of Chenhsong Injection Molding Machine

    Cavities: 1 + 1

  • The Dimensions of Chenhsong Injection Molding Machine

    Dimensions: 260mm X 161mm X 110mm
    182mm X 170mm X 65mm

  • The Product Weight of Chenhsong Injection Molding Machine Part

    Product weight: 200 grams + 80 grams

  • The Thickness of Chenhsong Injection Molding Machine

    Thickness: 2mm

  • The Cycle Time of Chenhsong Injection Molding Machine

    Cycle Time: 50 seconds

  • The Op Mode of Chenhsong Injection Molding Machine

    Op Mode: Fully-automatic
